TPM05 – P47 THUNDERBOLT GP/EP SIZE 30-35CC SCALE 1:6 ¼ ARF

TPM05 - P47- THUNDERBOLT
Availability: In stock
$499.00
$459.00

Introducing

    The Republic P-47 Thunderbolt was the largest, heaviest, and most expensive fighter aircraft in history to be powered by a single piston engine. It was heavily armed with eight .50-caliber machine guns, four per wing. When fully loaded, the P-47 weighed up to eight tons, and in the fighter-bomber ground-attack roles could carry five-inch rockets or a significant bomb load of 2,500 pounds; over half the weight the B-17 bomber  could carry on long-range missions

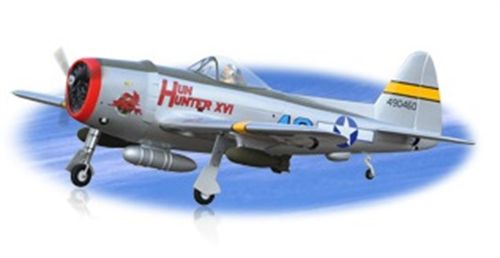

    Phoenix Model’s P-47 Thunderbolt ARF is a remarkably accurate rendition of America’s favorite fighter airplane. This 33cc-sized almost-ready-to-fly airplane was designed and crafted to be the most realistic sport-scale ARF on the market. 3-D computer engineering produces parts that fit with absolute precision for straight, strong assembly. Slotted flaps provide function as well as scale appearance, concealing the control horns internally to maintain scale lines. Phoenix Model has thought of just about everything to make set up convenient, including a removable, and large top hatch for battery packs or radio equipment.

Technical data

- Wingspan: 2005mm (78.9 in)
- Length: 1640mm (64.5 in)
- Flying weight: 8-10 kg
- Wing area: 66 dm2
- Wing loading: 120g/dm2
- Wing type: Naca airfoils
- Covering type: Genuine ORACOVER®
- Retract gear type: Air-retract 90 degree With CNC Suspension Metal Struts (included)
- Spinner size: Scale type (not included)
- Pressure for air tank retract: 7 bar (100 PSI)
- Radio: 8 channel radio system minimum. 9 standard hi-torque servo: 2 aileron; 2 flap; 2 elevator; 1 rudder; 1 throttle; 1 air valve (not included)
- Engine: 30-35cc (gas engine) (not included)
- Motor: brushless outrunner 2500 W, 250 KV (not included)
- Recommended receiver battery: 6.0V 2400/2600mAh NiMH (not included)
- Propeller: suit with your engine
- Gravity CG: 120 mm (4.7 in) Back from  the leading edge of the wing, at the fuselage
- Control throw Ailerons: Low: 15mm up/down, 10% expo; High: 20mm up/down, 10% expo
- Control throw Elevators: Low: 15mm up/down, 12% expo; High: 20mm up/down, 12% expo
- Control throw Rudder: Low: 30mm right/left, 15% expo; High: 45mm right/left, 15% expo
- Control throw Flaps: Mid: 15mm down; Landing: 25mm down
- Experience level: Intermediate
- Plane type: scale military
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: RIMFIRE 1.60 (not included)
- Lipo cell: 12 cells / 5000 – 6000mAh (not included)
- Esc: 120-160A (not included)

Feature

- Official licensed product
- Designed for compatibility with both GP and EP flight
- Covered in Oracover
- Top quality balsa/light plywood construction
- Air-retract With CNC Suspension Metal Struts included
- Full-depth cockpit and instrument panel and pilot included
- Bolt-on two-piece wing for easy transport and setup at the field
- Removable canopy for easy change lipo battery and set up radio
- Strong Light Weight Construction
- Superb flying characteristics, plus an accurate scale outline
- High-quality hardware package included

Colour chart

•  Silver              ( #21091)
•  Oliver Drab    ( #21018)
•  Ferrari Red    ( #21023)
•  White              ( #21010)
•  Dark Blue      ( #21052)
•  Cub Yellow    (# 21030)
•  Black               (# 21071)

Packing

- Packing in a carton:   (57x21x12) inches    -  (L x W x H)
- Weight: 23 lbs
